CW/WP Series Polypropylene Wound Cartridges

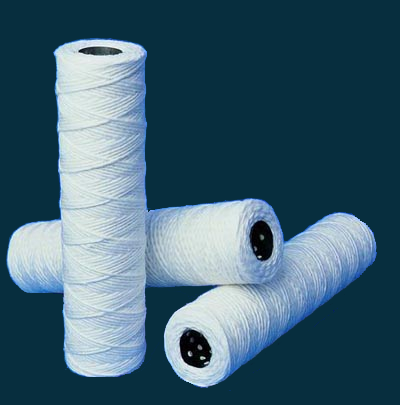

CW and WP Series cartridges are manufactured from a durable polypropylene cord that is wound around a rigid polypropylene core. They are an economical solution to reduce fine sediment, including sand, silt, rust and scale particles.
CW cartridges are very economical and wound in a standard pattern around the core. They are available in 10, 30 and 50-micron ratings.
WP Series cartridges are wound in a precise pattern around the core providing greater surface area. The result is higher dirt-loading capacity and greater efficiency than standard wound cartridges like the CW.
Both of these string-wound cartridge styles are capable of withstanding temperatures up to 165° F (73.9° C), and will accommodate flow rates between 7 and 10 GPM with minimal pressure drop.
CW and WP Series cartridges are suitable for a wide variety of sediment filtration applications, including municipal and well water as well as many industrial fluids.
- String-wound design reduces fine sediment from a variety of fluids
- Withstands temperatures up to 165° F (73.9° C)
- Economically priced
- Nominal 10, 30, 50-micron rating (CW) and nominal 5, 30-micron rating (WP)
Cartridge Specifications and Performance Data
| Model | MaximumDimensions | Micron Rating(Nominal) | Initial Ä P (psi)@ Flow Rate (gpm) |
|
CW-F |
2-1/4″ x 9-7/8″ (60 mm x 251 mm) |
10 |
<1 psi @ 10 gpm (<0.07 bar @ 27 L/min) |
|
CW-MF |
2-1/4″ x 9-7/8″ (60 mm x 251 mm) |
30 |
<1 psi @ 10 gpm (<0.07 bar @ 38 L/min) |
|
CW-50 |
2-1/4″ x 9-7/8″ (60 mm x 251 mm) |
50 |
<1 psi @ 10 gpm (<0.07 bar @ 38 L/min) |
|
WP-5 |
2-1/4″ x 9-7/8″ (60 mm x 251 mm) |
5 |
<2.5 psi @ 10 gpm (<0.17 bar @ 38 L/min) |
|
WP-30 |
2-1/4″ x 9-7/8″ (60 mm x 251 mm) |
30 |
<1.4 psi @ 10 gpm (<0.10 bar @ 38 L/min) |
