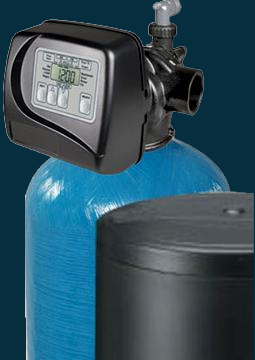

Industrial & Commercial Water Softeners
Rayned commercial water softeners are built utilizing Rayned’s resin as the primary layer. These cationic ion exchange systems are designed to remove calcium and magnesium (hardness), and a host of other cations from the water. Rayned takes care of the little extras such as: machined PVC distribution systems, oversized brine tanks, safety floats standard in 16 inch or larger systems, and anthracite under bedding for less channeling
- Electronic Time Clock
- 100% corrosion proof plastic systems
- Energy efficient controller uses less than $5.00 of electricity per year
- Tanks feature 150 PSI operating pressure
- 10 year warranty on tank
- All international voltages available
- Electronic Time Clock Systems with Professional Programming
|
Model |
Tank size |
CaCOs Capacity |
Service Flow Rate |
Backwash 50% Exp. @ GPM LPM) |
Brine Tank |
Standard Connection Size |
||||
|
@ 6 |
@ 10 |
@ 15 |
Standard GPM (LPM) @5-10 PSID |
@15 |
||||||
|
RAYSF-1C-12 |
12 x 52 |
47,600 |
60,400 |
68,800 |
10 (37.9) |
20 (75.7) |
3.5 (13.6) |
100 Ltrs.
|
1” MNPT |
|
|
RAYSF-1C-13 |
13 x 54 |
59,500 |
75,500 |
86,000 |
12 (45.5) |
24 (90.9) |
4.1 (15.5) |
100 Ltrs.
|
1” MNPT |
|
|
RAYSF-1C-14 |
14 x 65 |
71,400 |
90,600 |
103,200 |
15 (56.9) |
25 (94.6) |
4.5 (17.0) |
100 Ltrs.
|
1” MNPT |
|
|
RAYSF-1C-16 |
16 x 65 |
95,200 |
120,800 |
137,600 |
20 (75.7) |
25 (94.6) |
5.0 (18.9) |
100 Ltrs.
|
1” MNPT |
|
|
RAYSF-125C-18 |
18 x 65 |
119,000 |
151,000 |
172,000 |
* 25 (94.6) |
25 (94.6) |
7.0 (26.5) |
100 Ltrs.
|
1.25” MNPT |
|
|
RAYSF-125C-21 |
21 x 62 |
142,000 |
181,200 |
206,400 |
* 25 (94.6) |
25 (94.6) |
9.0 (37.1) |
100 Ltrs.
|
1.25” MNPT |
|
|
RAYSF-15C-16 |
16 x 65 |
95,200 |
120,800 |
137,600 |
20 (75.8) |
33 (125) |
5.0 (18.9) |
300 Ltrs.
|
1.5 MNPT |
|
|
RAYSF-15C-18 |
18 x 65 |
119,000 |
151,000 |
172,000 |
25 (94.8) |
50 (190) |
7.0 (26.5) |
300 Ltrs.
|
1.5 MNPT |
|
|
RAYSF-15C-21 |
21 x 62 |
166,600 |
211,400 |
240,800 |
35 (133) |
70 (265) |
9.0 (37.1) |
300 Ltrs.
|
1.5 MNPT |
|
|
RAYSF-15C-24 |
24 x 72 |
226,100 |
286,900 |
326,800 |
45 (171) |
90 (341) |
12.0 (45.4) |
300 Ltrs.
|
1.5 MNPT |
|
|
RAYSF-15C-30 |
30 x 72 |
333,200 |
422,800 |
481,600 |
65 (246) |
100 (379) |
19.0 (71.9) |
300 Ltrs.
|
1.5 MNPT |
|
|
RAYSF-15C-36 |
36 x 72 |
428,400 |
543,600 |
619,200 |
90 (341) |
100 (379) |
27.0 (102.2) |
500 Ltrs.
|
2″ MNPT |
|
Operating capacity based on influent of 400 ppm as CaCO3 with a ratio of 2 parts calcium to 1 part magnesium.
1.5 inch systems have a 2 inch inlet/outlet option available.
1.5 and 2 inch systems have a no-untreated-water bypass option available.
Operating pressure: 25 to 150 psi (1.7 to 10.3 bar) Operating temperature: 36 to 120ºF (2 to 48.9ºC)
All pressure vessels are wound fiberglass, reinforced polyethylene or polypropylene copolymer, and are NSF® listed
