SPECIFICATIONS

WS2CI

WS2CI/QC

WS25EI
WS25SQ

WS2EI/QC
WS2SQ/QC

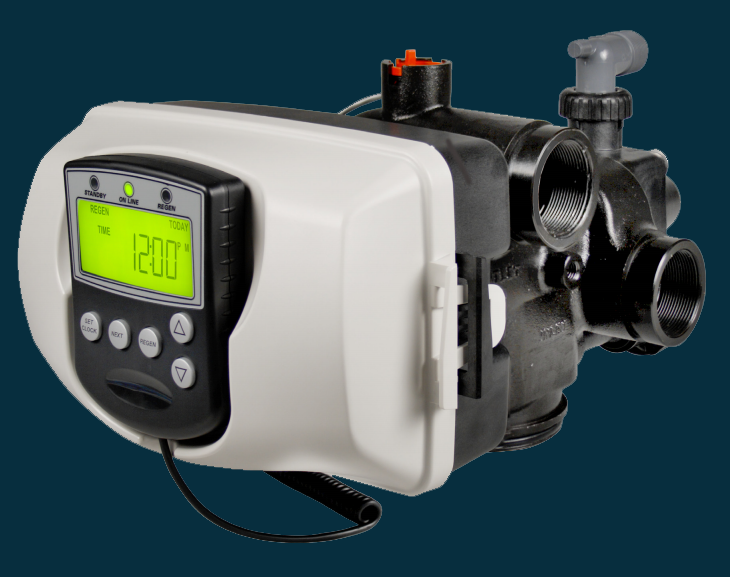

WS2H

Service @ 1 bar/159 psi drop

435 Ipm, 26.1 m3/h

473 Ipm, 28.4 m3/h

435 Ipm, 26.1 m3/h

473 Ipm, 28.4 m3/h

473 Ipm, 28.4 m3/h

Backwash @ 1.7 bar/25 ps10 drop

303 Ipm, 18.2 m3/h

322 Ipm, 19.3 m3/h

303 Ipm, 18.2 m3/h

322 Ipm, 19.3 m3/h

473 Ipm, 28.4 m3/h

Softener

12” – 48” diameter

12” – 48” diameter

12” – 48” diameter

12” – 48” diameter

18” – 63” diameter

Filter (1)

12” – 36” diameter

12” – 36” diameter

12” – 36” diameter

12” – 36” diameter

18” – 48” diameter

Inlet/Outlet
Fitting Connections

2″ Female BPST or NPT

2″ Female BPST or NPT

2″ Female BPST or NPT

2″ Female BPST or NPT

2″ Female BPST or NPT/
2.5″ Groove Lock

Valve Material

Brass

Brass

Brass

Brass

Brass

Cycles

Up to 9

Up to 9

Up to 6

Up to 6

Up to 9

Regeneration

Downflow

Downflow

Downflow

Downflow

Downflow

Operating Pressures

1.4 – 8.6 bar

1.4 – 8.6 bar

1.4 – 8.6 bar

1.4 – 8.6 bar

1.4 – 8.6 bar

Operating Temperatures

4° – 43° C

4° – 43° C

4° – 43° C

4° – 43° C

4° – 43° C

Flow Rate Range

5.7 – 568 Ipm

5.7 – 568 Ipm

5.7 – 568 Ipm

5.7 – 568 Ipm

5.7 – 473 Ipm

Volume Range

0.02 – 5700 m3

0.02 – 5700 m3

0.02 – 5700 m3

0.02 – 5700 m3

38 – 3796.2 Liters x 1000

Totalizer

Yes

Yes

Yes

Yes

Yes

Distributor Pilot

50mm O.D or 1.90″ O.D. Pipe

63mm O.D or 2.375″ O.D. Pipe

50mm O.D or 1.90″ O.D. Pipe

63mm O.D or 2.375″ O.D. Pipe

63mm O.D or 2.375″ O.D. Pipe

Brine Line Connection

1.5″ Female NPT

1.5″ Female NPT

1.5″ Female NPT

1.5″ Female NPT

2″ Female NPT or BPST
2.5 Groove Lock

Brine Line Connection

1″ Male NPT elbow
3/4″ X 1″ Solvent elbow
1/2″ O.D. Poly Tube Compresion

1″ Male NPT elbow
3/4″ X 1″ Solvent elbow
1/2″ O.D. Poly Tube Compresion

1″ Male NPT elbow
3/4″ X 1″ Solvent elbow
1/2″ O.D. Poly Tube Compresion

1″ Male NPT elbow
3/4″ X 1″ Solvent elbow
1/2″ O.D. Poly Tube Compresion

1″ Male NPT elbow
3/4″ X 1″ Solvent elbow

Mounting Base Options

4” – 8 UN

Quick Disconnect
4” – 8 UN
6″ Flange or Side Mount

4” – 8 UN

Quick Disconnect
4” – 8 UN
6″ Flange or Side Mount

Quick Disconnect
4” – 8 UN
6″ Flange
Side Mount

Height From Top of Tank

216mm

with 4″ – 8 UN QC Base is 284.5mm
with 6″ – 8 UN QC Base is 287mm

216mm

with 4″ – 8 UN QC Base is 284.5mm
with 6″ – 8 UN QC Base is 287mm

with 4″ – 8 UN QC Base is 292mm
with 6″ – 8 UN QC Base is 294.6mm

Shipping Weight

13 Kg

14 Kg

13 Kg

14 Kg

22.7 Kg

Supply Voltage

230V AC

230V AC

230V AC or 6AA NMHB

230V AC

230V AC

Supply Frequency

50 Hz

50 Hz

50 Hz

50 Hz

50 Hz

Output Voltage

12V AC

12V AC

12V AC

12V AC

12V AC

Output Current

500 mA

500 mA

500 mA

500 mA

750 mA
