1.5” Water SpecialiSt ValVe Specification
|
|
|
|
SPECIFICATIONS |

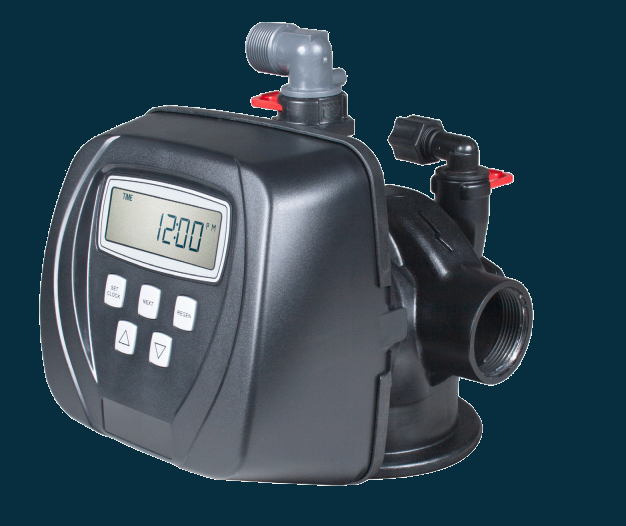

WS1.5CI |

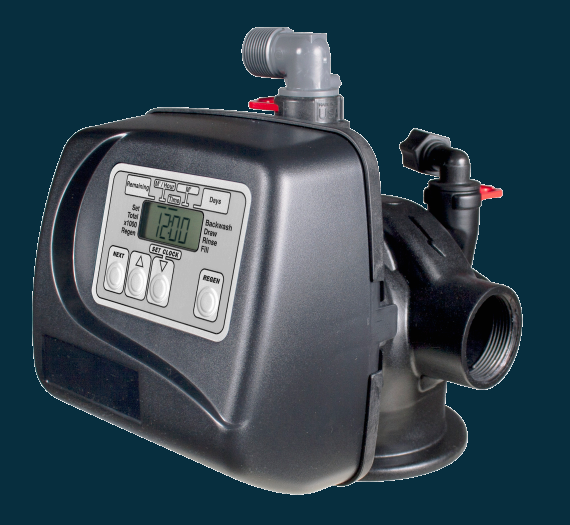

WS1.5EI |
|
Service @ 1 bar/15 psi drop |
265 Ipm, 15.9 m3/h |
265 Ipm, 15.9 m3/h |
|
Backwash @ 1.7 bar/25 psi drop |
197 Ipm, 11.8 m3/h |
197 Ipm, 11.8 m3/h |
| Tank Applications: | ||
|
Softener |
12” – 24” diameter |
12” – 24” diameter |
|
Filter (1) |
12” – 30” diameter |
12” – 30” diameter |
|
Inlet/Outlet |
1.5” Male BPST or NPT |
1.5” Male BPST or NPT |
|
Valve Material |
Brass |
Brass |
|
Cycles |
Up to 9 |
Up to 6 |
|
Regeneration |
Downflow |
Downflow |
|
Operating Pressures |
1.4 – 8.6 bar |
1.4 – 8.6 bar |
|
Operating Temperatures |
4° – 43° C |
4° – 43° C |
| Meter: | ||
|
Flow Rate Range |
2 – 284 Ipm |
2 – 284 Ipm |
|
Volume Range (Cubic Meters) |
0.02 – 5700.0m3 |
.02 – 5700m3 |
|
Totalizer |
Yes |
Yes |
|
Distributor Pilot |
50mm O.D or 1.90″ O.D. Pipe |
50mm O.D or 1.90″ O.D. Pipe |
|
Brine Line Connection |
3/4″ Female NPT |
3/4″ Female NPT |
|
Mounting Base Options |
4” – 8 UN |
4” – 8 UN |
|
Height From Top of Tank |
191mm |
191mm |
|
Shipping Weight |
9.5 Kg |
9.5 Kg |
| Electrical: | ||
|
Supply Voltage |
230V AC |
230V AC or 6AA NMHB |
|
Supply Frequency |
50 Hz |
50 Hz |
|
Output Voltage |
12V AC |
12V AC |
|
Output Current |
500 mA |
500 mA |
|
|
|
|
