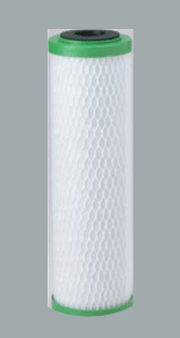

CBR2 SERIES Carbon Briquette Multimedia Cartridges
The CBR2-10 and CBR2-10R are advanced multimedia cartridges designed to reduce chlorine taste and odor, dissolved and particulate lead, cysts, MTBE and certain volatile organic chemicals (VOCs).
CBR2 Series cartridges are manufactured using a patented process, and combine powdered activated carbon (PAC) with a specially designed adsorbent medium for lead and mercury reduction.
Endurawrap™, a uniquely formulated polyolefin bilaminateprefilter, designed to significantly increase the useful life of the cartridge by trapping sediment that typically plugs carbon block cartridges, protects these cartridges.
In addition to lead reduction, the unique structure of the carbon block enables it to reduce Giardia, Cryptosporidium, Entamoeba and Toxoplasma cysts and fine sediment particles down to 0.5 microns.
As with our standard CBC Series carbon block, both the CBR2-10 and CBR2-10R are effective at reducing levels of chlorine taste & odor, MTBE and VOC
The CBR2-10R has a built-in flow restrictor (0.6 gpm) to allow for maximum contact time.
➣ Nominal 0.5-micron rating
➣ Lead reduction through 2000 gallons
➣ VOC and MTBE reduction
➣ 99.95% reduction of Cryptosporidium, Giardia,Entamoeba and Toxoplasma cysts
➣ Premium high capacity chlorine taste & odor reduction through more than 20,000 gallons
➣ Enhanced dirt holding capacity
Cartridge Specifications and Performance Data
| Model | Maximum
Dimensions |
Micron Rating
(Nominal) |
Initial Ä P (psi)
@ Flow Rate (gpm) |
Chlorine Taste & Odor
Reduction @ Flow Rate* |
VOC*
gal @ gpm |
MTBE*
gal @ gpm |
|
CBR2-10 |
2-7/8″ x 9-3/4″ (73 mm x 247 mm) |
0.5 |
15.0 psi @ 1.0 gpm (1.0 bar @ 3.8 L/min) |
>20,000 gal @ 1.0 gpm (>75,700 liters @ 3.8 L/min) |
600 @ 0.6 (2,270 L @ 2.3 L/min) |
500 @ 0.6 (1,890 L @ 2.3 L/min) |
|
CBR2-10R |
2-7/8″ x 9-3/4″ (73 mm x 247 mm) |
0.5 |
Flow restricted to 0.6 gpm (2.3 L/min) with built-in flow restrictor |
>20,000 gal @ 0.6 gpm (>75,700 liters @ 2.3 L/min) |
600 @ 0.6 (2,270 L @ 2.3 L/min) |
500 @ 0.6 (1,890 L @ 2.3 L/min) |
