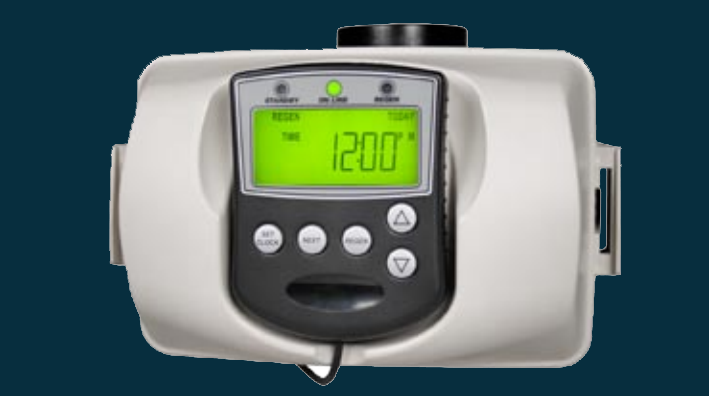

3” Water SpecialiSt ValVe Specification
|
||
|
SPECIFICATIONS |
WS3″ |
|
|
Service @ 15 psi drop |
250 gpm |
|
|
Backwash 25 psi drop |
220 gpm |
|
| Tank Applications: | ||
|
Softener |
18” – 63” diameter |
|
|
Inlet/Outlet |
3″ Female NPT |
|
|
Valve Material |
Lead Free Brass |
|
|
Cycles |
Up to 9 |
|
|
Regeneration |
Downflow |
|
|
Operating Pressures |
20 – 125 psi |
|
|
Operating Temperatures |
40° – 110° F |
|
| Meter: | ||
|
Flow Rate Range |
3.5 – 350 gpm |
|
|
Volume Range (Gallons) |
10 – 999,000 gallons |
|
|
Totalizer |
Yes |
|
|
Distributor Pilot |
3.5″ O.D Pipe |
|
|
Brine Line Connection |
3″NPT Elbow |
|
|
Mounting Base Options |
Quick Disconnect |
|
|
Height From Top of Tank |
12.25″ |
|
|
Shipping Weight |
57 lbs. (no meter) |
|
| Electrical: | ||
|
Supply Voltage |
120V AC |
|
|
Supply Frequency |
60 Hz |
|
|
Output Voltage |
24V AC |
|
|
Output Current |
750 mA |
|
|
|
|
|
